⚠ Phased out product -- We provide continued support & updates for our customers.

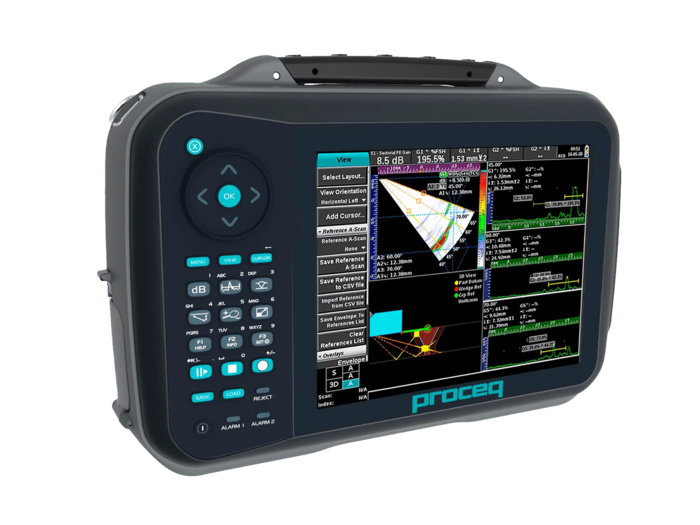

FD100 PA 16:16 ⚠ Ultrasound Inspection for different type of materials, metal and not metal, such as composite or plastic

Flaw Detection

FD100 PA 16:16 ⚠

Ultrasound Inspection for different type of materials, metal and not metal, such as composite or plastic

  • High level of performance for conventional portable flaw detection with the power of phased array
  • Comprehensive imaging capabilities cover many applications
  • The 3D scan plan helps to visualize the phased array beam coverage in the component

Applications:

In different fields such as; Aerospace, Automotive, Railway, Naval / Ultrasonic Testing of Welds Using Phased Array / Phased Array Ultrasonic Testing of Polyethylene / Electrofusion Joints Flange Face Corrosion Inspection / Detection and the Sizing of Defects, Cracks, and Porosity

The best entry-level ultrasonic phased array flaw detector
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Performance.svg
Performance

High level of performance for conventional portable flaw detection with the power of phased array The same software workflow between modules makes the learning phased array familiar, easier, and quicker.

https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Versatility

Comprehensive imaging capabilities cover many applications including; A, B, C, S, True Top, and End scans.

https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Productivity-17.svg
Productivity

The 3D scan plan helps to visualize the phased array beam coverage in the component. It also shows the defect position using the 3D toolset to create valuable images.

SWISS MADE_horizontal lockup.svg
Software for
Tech Specs
Display
TFT 8.4"
File Size
Up to 3 GB
Report Generation
Customisable pdf report, PNG screen capture, CSV file output option
Encoder
1 or 2 axis (quadrature input)
Languages
English, German, French, Spanish, Russian, Chinese, Hungarian, Italian, Portuguese, and Japanese
FD100 PA 16:16 ⚠ Tech Specs
Instrument
Tech Specs
Configuration
2 UT & 1 l-PEX Channels
Transducer Socket
Lemo1 - BCD
I-PEX
Pulse Voltage
25 to 75 V (in 5 V steps)
PRF
1 to 5000 Hz
Gain Range
76 dB (0.1 dB steps)
Bandwidth
PA: 200 KHz to 14 MHz
UT 200 KHz to 22 MHz
Display
TFT 8.4"
Signal Enhancement
Digital filters, smoothing, contouring, rejection, averaging
Architecture
16 active channels
Digitizing Frequency
65 MHz
Focal Laws
128
Maximum A Scan Length
4096
Supported Scans
A, B, C, L, S-Scan, Merged, true Top & End
Number of Scans
1 (with up to 3 extracted A scans)
Number of Layouts
35
Measurements
Path length, depth, surface distance, DAC, AWS, DGS, TGS
File Size
Up to 3 GB
Report Generation
Customisable pdf report, PNG screen capture, CSV file output option
Encoder
1 or 2 axis (quadrature input)
Languages
English, German, French, Spanish, Russian, Chinese, Hungarian, Italian, Portuguese, and Japanese
Battery Life
6 Hrs
IP rating
IP66
PDF Version
